Article code:
OEM:
SPEED OF WIRE ROPE REELING AND ELECTRICITY CONSUMPTION
| Rope Load (kg) | Reeling Speed (m/min) | Electricity Consumption (amp) |
|---|---|---|
| 0 | 6.5 | 70 |
| 4532 | 2.5 | 280 |
| 5443 | 1.9 | 360 |
| 6803 | 1.3 | 420 |
PULLING FORCE DEPENDING ON ROPE LAYER
| Rope Layer | Pulling Force (kg) | Length of Rope on Reel (m) |
|---|---|---|
| 1 | 6803 | 5 |
| 2 | 6157 | 11.5 |
| 3 | 5165 | 19 |
| 4 | 4449 | 26 |

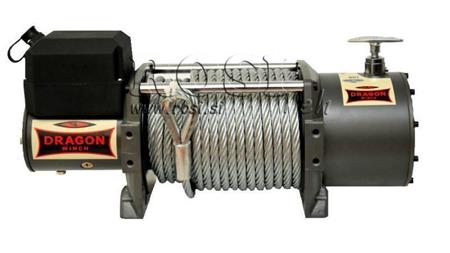

The Truck 15000 HD winch is suitable for small and medium off-road vehicles. Also for towing vehicles and industrial vehicles. It can pull up to 6803 kg (15000 lbs). The design of the winch with a powerful motor and transmission, as well as a good construction of the winch itself, allows for use in practically all conditions. The Truck 15000 HD winch provides the highest level of reliability and safety.
WHERE TO FIND THE WIRELESS CONTROLLER FOR THE WINCH?
Supplier:
Poland
Return or exchange:
14 days
pulling force:
6803 kg
length of wire rope:
26 m, thickness 12 mm
power supply:
electricity (via battery)
control:
wired and wireless controller

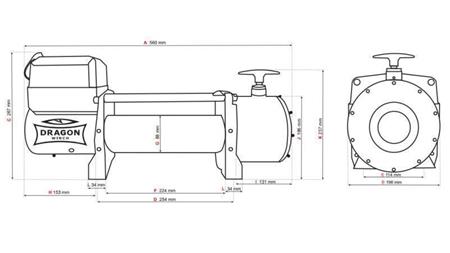

Dimensions (d/w/h):
560mm x 196mm x 267mm
dimensions of mounting hole spacing:
254mm x 114mm
brake:
dynamic
power transmission system:
3-stage planetary
wire rope guide:
4 cylinders
Product weight:
53 kg
Voltage:
12V
power:
7.8 hp
